elliptical_cylinder

Form factor for an elliptical cylinder.

Parameter Description Units Default value
scale Source intensity None 1
background Source background cm-1 0.001
radius_minor Ellipse minor radius Å 20
axis_ratio Ratio of major radius over minor radius None 1.5
length Length of the cylinder Å 400
sld Cylinder scattering length density 10-6Å-2 4
sld_solvent Solvent scattering length density 10-6Å-2 1
theta cylinder axis to beam angle degree 90
phi rotation about beam degree 0
psi rotation about cylinder axis degree 0

The returned value is scaled to units of cm-1 sr-1, absolute scale.

../../_images/elliptical_cylinder_geometry.png

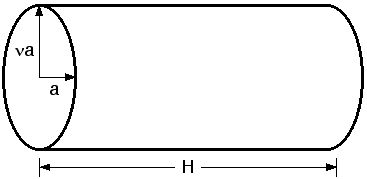

Fig. 24 Elliptical cylinder geometry \(a = r_\text{minor}\) and \(\nu = r_\text{major} / r_\text{minor}\) is the axis_ratio.

The function calculated is

\[I(\vec q)=\frac{1}{V_\text{cyl}}\int{d\psi}\int{d\phi}\int{ p(\theta,\phi,\psi)F^2(\vec q,\alpha,\psi)\sin(\alpha)d\alpha}\]

with the functions

\[F(q,\alpha,\psi) = 2\frac{J_1(a)\sin(b)}{ab}\]

where

\[ \begin{align}\begin{aligned}a = qr'\sin(\alpha)\\b = q\frac{L}{2}\cos(\alpha)\\r'=\frac{r_{minor}}{\sqrt{2}}\sqrt{(1+\nu^{2}) + (1-\nu^{2})cos(\psi)}\end{aligned}\end{align} \]

and the angle \(\psi\) is defined as the orientation of the major axis of the ellipse with respect to the vector \(\vec q\). The angle \(\alpha\) is the angle between the axis of the cylinder and \(\vec q\).

For 1D scattering, with no preferred orientation, the form factor is averaged over all possible orientations and normalized by the particle volume

\[P(q) = \text{scale} <F^2> / V\]

For 2d data the orientation of the particle is required, described using a different set of angles as in the diagrams below, for further details of the calculation and angular dispersions see Oriented particles .

../../_images/elliptical_cylinder_angle_definition.png

Fig. 25 Note that the angles here are not the same as in the equations for the scattering function. Rotation \(\theta\), initially in the \(xz\) plane, is carried out first, then rotation \(\phi\) about the \(z\) axis, finally rotation \(\Psi\) is now around the axis of the cylinder. The neutron or X-ray beam is along the \(z\) axis.

../../_images/elliptical_cylinder_angle_projection.png

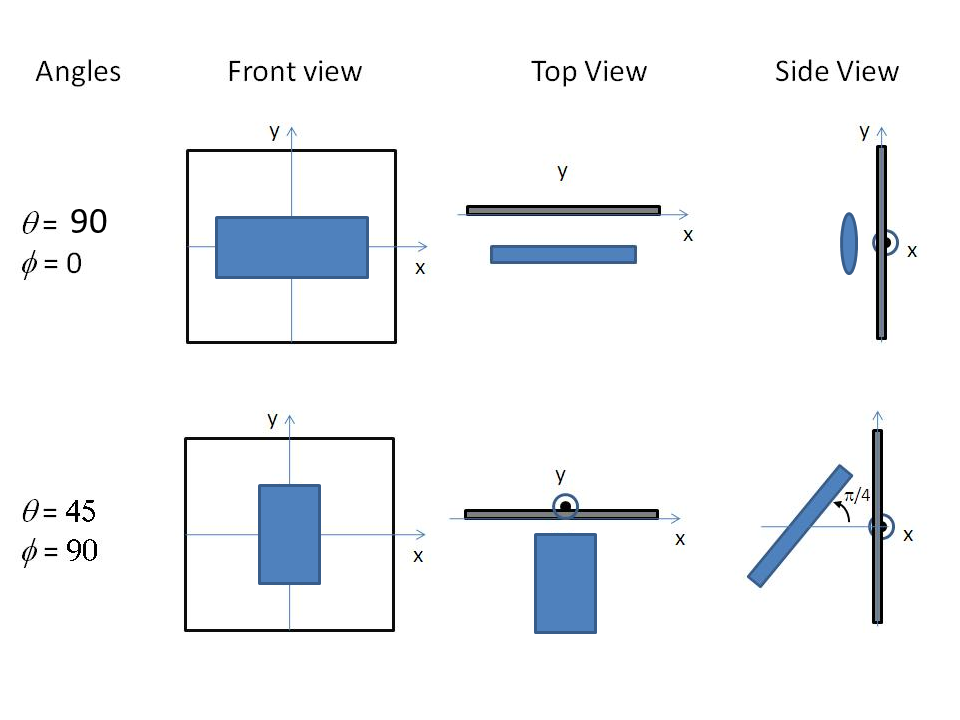

Fig. 26 Examples of the angles for oriented elliptical cylinders against the detector plane, with \(\Psi\) = 0.

The \(\theta\) and \(\phi\) parameters to orient the cylinder only appear in the model when fitting 2d data.

NB: The 2nd virial coefficient of the cylinder is calculated based on the averaged radius \((=\sqrt{r_\text{minor}^2 * \text{axis ratio}})\) and length values, and used as the effective radius for \(S(Q)\) when \(P(Q)*S(Q)\) is applied.

Validation

Validation of our code was done by comparing the output of the 1D calculation to the angular average of the output of the 2D calculation over all possible angles.

In the 2D average, more binning in the angle \(\phi\) is necessary to get the proper result. The following figure shows the results of the averaging by varying the number of angular bins.

../../_images/elliptical_cylinder_averaging.png

Fig. 27 The intensities averaged from 2D over different numbers of bins and angles.

../../_images/elliptical_cylinder_autogenfig.png

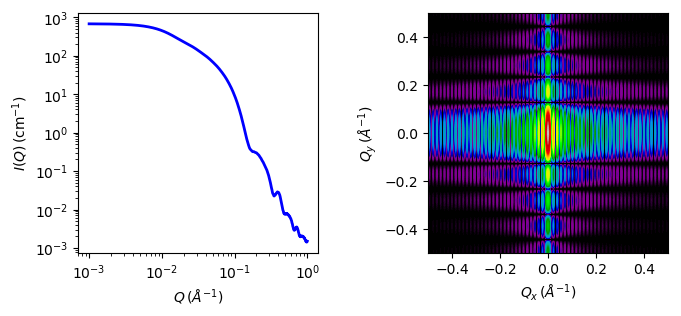

Fig. 28 1D and 2D plots corresponding to the default parameters of the model.

Source

elliptical_cylinder.py \(\ \star\ \) elliptical_cylinder.c \(\ \star\ \) lib/gauss76.c \(\ \star\ \) lib/sas_J1.c \(\ \star\ \) lib/polevl.c

References

  1. L A Feigin and D I Svergun, Structure Analysis by Small-Angle X-Ray and Neutron Scattering, Plenum, New York, (1987) [see table 3.4]
    1. Onsager, Ann. New York Acad. Sci., 51 (1949) 627-659

Authorship and Verification

  • Author:
  • Last Modified by:
  • Last Reviewed by: Richard Heenan - corrected equation in docs Date: December 21, 2016
