peak_lorentz

A Lorentzian peak on a flat background

Parameter	Description	Units	Default value
scale	Scale factor or Volume fraction	None	1
background	Source background	cm-1	0.001
peak_pos	Peak postion in q	Å-1	0.05
peak_hwhm	HWHM of peak	Å-1	0.005

The returned value is scaled to units of cm^-1 sr^-1, absolute scale.

This model describes a Lorentzian shaped peak on a flat background.

Definition

The scattering intensity $I(q)$ is calculated as

$$I(q) = \frac{scale}{\bigl(1+\bigl(\frac{q-q_0}{B}\bigr)^2\bigr)} + background$$

with the peak having height of $I_0$ centered at $q_0$ and having a HWHM (half-width half-maximum) of B.

For 2D data the scattering intensity is calculated in the same way as 1D, where the $q$ vector is defined as

$$q = \sqrt{q_x^2 + q_y^2}$$

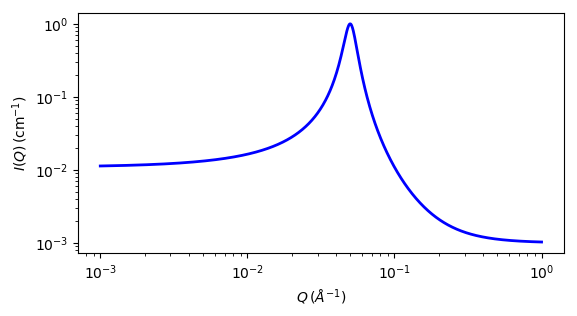

Fig. 113 1D plot corresponding to the default parameters of the model.

Source

peak_lorentz.py

References

None.
