Example 3: Magnetic Spheres

In this example we will use finite element meshes to calculate the scattering intensity patterns for a sphere with uniform nuclear and magnetic scattering length densities (SLDs), with the magnetisation and polarisation being horizontal and perpendicular to the beamline. Specifically we will observe the change in the pattern of the ++ cross-section as the ratio of these two SLDs varies, as in this paper [1] (specifically Fig 1).

We define the ratio of the two SLDs as:

\[R = \frac{\left\|N\right\|^2}{b_H^2\left\|M_x\right\|^2}\]

Where \(N\) is the nuclear SLD and \(M_x\) the \(x\) component of the magnetisation. \(b_H = 2.70\times 10^{-15}m\)

Using the formulas from the paper we can write a python script to generate analytical results for the scattering pattern in the ++ cross-section.

\[I^{++}(\mathbf{q}) = \frac{8\pi^3}{V}\left( \left\|\widetilde{N}\right\|^2 + b_H^2\left\|\widetilde{M}_x\right\|^2\sin^4\theta - b_H\left( \widetilde{N}\widetilde{M}_x^* + \widetilde{N}^*\widetilde{M}_x \right)\sin^2\theta \right)\]

Where \(\widetilde{N}\) and \(\widetilde{M}_x\) are the fourier transforms of \(N\) and \(M_x\) respectively.

We will use the same \(R\) values as in the paper referenced above and hence require:

  • \(R=0.0025\)

  • \(R=0.2025\)

  • \(R=4\)

  • \(R=2500\)

The code is as follows:

import numpy as np
import math
from scipy.special import jv, gamma
import matplotlib.pyplot as plt
from matplotlib.ticker import MaxNLocator

def fourier(mag, Q): # F.T. of sphere radius 0.5
    return mag*((4*math.pi/3.0)*gamma(5/2.0) * jv(3/2.0, Q/2.0)/np.float_power(Q/4.0, 3/2.0)/8.0)

def cross_section(Qx, Qy, n, m): # the result for the ++ cross-section
    theta = math.atan2(Qy, Qx)
    Q = math.sqrt(math.pow(Qx, 2) + math.pow(Qy, 2))
    term = np.square(np.abs(fourier(n, Q)))
    term += np.square(np.abs(fourier(m, Q)))*math.pow(math.sin(theta), 4)
    term += -(fourier(n, Q)*fourier(m, Q).conjugate() + \
              fourier(m, Q)*fourier(n, Q).conjugate()   ) * math.pow(math.sin(theta), 2)
    # the factor of 1E8 is to correspond with Sasview's intensity units
    return term*1E8/(4*math.pi*math.pow(0.5,3)/3.0)

WIDTH = 500
R = 2500

x = np.linspace(-5, 5, WIDTH)
y = np.linspace(-5, 5, WIDTH)
xs, ys = np.meshgrid(x, y)

vals = np.zeros_like(xs)
for i in range(WIDTH):
    for j in range(WIDTH):
        vals[i, j] = cross_section(xs[i, j], ys[i, j], n=math.sqrt(R), m=1)

fig = plt.figure()
contour_data = plt.contourf(xs, ys, vals, levels=MaxNLocator(nbins=20).tick_values(vals.min(), vals.max()))
plt.gca().set_aspect('equal')
cbar = fig.colorbar(contour_data)
plt.title("Magnetic sphere: R=" + str(R))
plt.xlabel("$Q_x / Å^{-2}$")
plt.ylabel("$Q_y / Å^{-2}$")
plt.show()

This code gives us the following scattering patterns:

../../../_images/analytical.png

Next we need to generate the .vtk files describing the magnetised spheres. For this we will use netgen, and the following python script:

from ngsolve import *
from ngsolve.comp import *
from ngsolve.solve import *
from ngsolve.utils import *
from netgen.csg import *
import netgen.gui
from netgen.meshing import MeshingParameters

box = OrthoBrick(Pnt(-1,-1,-1),Pnt(1,1,1)).bc("outer")
magnet = Sphere(Pnt(0.5,0.25,0.5),0.5)
air = box - magnet
geo = CSGeometry()
geo.Add (air.mat("air"), transparent=True)
geo.Add (magnet.mat("magnet").maxh(3), col=(0.3,0.3,0.1))
geo.Draw()
mesh = Mesh(geo.GenerateMesh(maxh=3, curvaturesafety=1))
mesh.Curve(3)
mesh.GetMaterials(), mesh.GetBoundaries()
mur = mesh.MaterialCF({"magnet" : 2}, default=0)
# alter the nuclear SLD here      ^

mag = mesh.MaterialCF({"magnet" : (1,0,0)}, default=(0,0,0))
Draw (mag, mesh, "M-field", draw_surf=False)
Draw (mur, mesh, "Nuclear", draw_surf=False)
# output as vtk
vtk = VTKOutput(ma=mesh,coefs=[mur,mag],names=["M-field","Nuclear"],filename="sphere_refined",subdivision=3,legacy=True)
vtk.Do()

This script sets the nuclear SLD to 2x10-6-2 and the magnetic SLD to (1x10-6, 0, 0)Å-2 giving \(R=4\).Note: The data have been produced with Netgen 6.2, which creates .vtu files by default. The key “legacy=True” is used in VTKOutput to produce legacy .vtk files. For older versions of netgen, this argument may not be required.

To obtain the required \(R\) values the code above should be altered where indicated to use nuclear SLDs of:

  • \(R=0.0025\): \(N=0.05\)

  • \(R=0.2025\): \(N=0.45\)

  • \(R=4\): \(N=2\)

  • \(R=2500\): \(N=50\)

Alternatively the generated files can be downloaded here:

We load each of these datafiles into the generic scattering calculator and set the following settings:

  • To view the ++ cross-section, with polarisation horizontal to the beamline:
    • Up_frac_in: 0.0

    • Up_frac_out: 0.0

    • Up_theta: 90.0

    • Up_phi: 0.0

  • To set the resolution of the detector:
    • No. of Qx (Qy) bins: 50

    • Qx (Qy) Max: 5.0

The interface for the \(R=2500\) sphere is shown below:

../../../_images/interface.png

For each of the vtk files we press Compute to generate the following outputs:

../../../_images/output.png

The default output images use a log scale - to compare our results to the analytical model we adjust the colour scales to be linear - with the same range as our analytical contour plots. For more detailed instructions on adjusting colour scales see example 2.

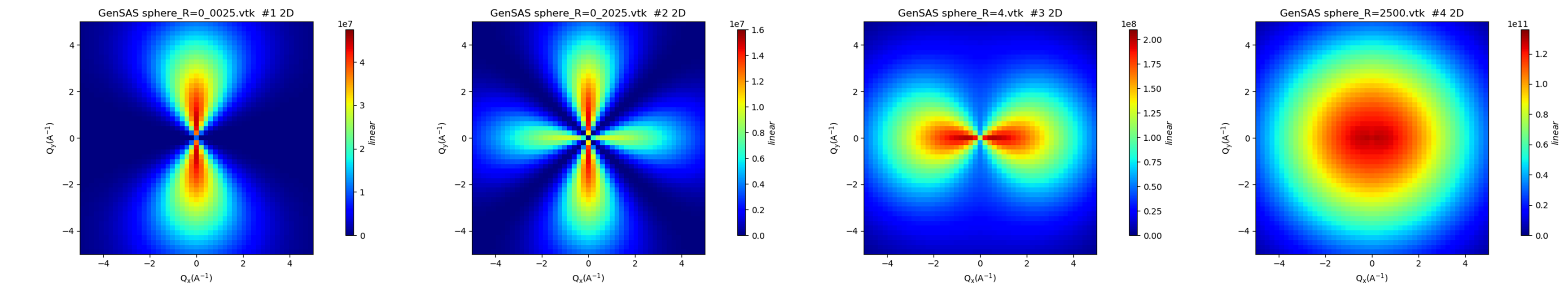

The rescaled outputs are shown below - with a repeat of the analytical results below for comparison.

../../../_images/output_scaled.png
../../../_images/analytical.png

Qualitatively we see a very good match between the analytical results and the outputs from the generic scattering calculator. If we wished to make a quantitative analysis we could adapt the code used to generate the analytical plots to compare the results pixel by pixel. We can save the output from the scattering calculator by right clicking the plot and selecting Save Points as a File, and then read this data into a python script:

import numpy as np
import math
from scipy.special import jv, gamma
import matplotlib.pyplot as plt
from matplotlib.ticker import MaxNLocator

def fourier(mag, Q): # F.T. of sphere radius 0.5
    return mag*((4*math.pi/3.0)*gamma(5/2.0) * jv(3/2.0, Q/2.0)/np.float_power(Q/4.0, 3/2.0)/8.0)

def cross_section(Qx, Qy, n, m): # the result for the ++ cross-section
    theta = math.atan2(Qy, Qx)
    Q = math.sqrt(math.pow(Qx, 2) + math.pow(Qy, 2))
    term = np.square(np.abs(fourier(n, Q)))
    term += np.square(np.abs(fourier(m, Q)))*math.pow(math.sin(theta), 4)
    term += -(fourier(n, Q)*fourier(m, Q).conjugate() + \
              fourier(m, Q)*fourier(n, Q).conjugate()   ) * math.pow(math.sin(theta), 2)
    # the factor of 1E8 is to correspond with Sasview's intensity units
    return term*1E8/(4*math.pi*math.pow(0.5,3)/3.0)

R = 2500

file_data = np.loadtxt("filepath to saved data for R=2500 sphere", skiprows = 4)

vals = np.zeros_like(file_data[:, 2])
for i in range(len(vals)):
    vals[i] = cross_section(file_data[i, 0], file_data[i, 1], n=math.sqrt(R), m=1)

errs = ((file_data[:, 2]-vals)/vals)*100

print("max err:", max(errs), "%")
print("min err:", min(errs), "%")
print("max |err|:", max(np.abs(errs)), "%")
print("min |err|:", min(np.abs(errs)), "%")
print("mean(|err|): ", np.mean(np.abs(errs)), "%")

We find the following comparison:

R

max |err|

mean |err|

0.0025

0.743%

0.165%

0.2025

0.996%

0.167%

4

0.743%

0.165%

2500

0.743%

0.165%

References
